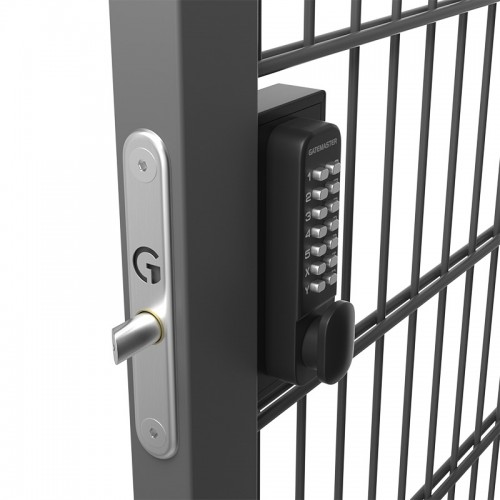

SUPERLOCK DIGITAL GATE LOCK DOUBLE SIDED FOR 1 1/2" TO 2 1/4" GATE FRAMES

BDG4060 SUPERLOCK DIGITAL GATE LOCK

Double Sided For 1 1/2" To 2 1/4" Gate Frame

This digital gate lock combines the convenience of a mechanical keypad with the ease of installation of the Superlock series. To fit, simply drill three holes in the gate frame and bolt the lock on.

Features:

• A compact and reliable gate digital lock to fit 1 1/2"-2 1/4" (40-60mm) gate frames.
• Latchbolt projects up to 5/8" (15mm) into gate post, which increases security and gives more tolerance.
• Lockcase is only 2 3/4" (70mm) wide - slimmest bolt-on lock in the market; adaptable lock design suits a variety of gate styles.
• Easy to fit and use wtih adjustable and removable bolts to ensure easy fitting to gates.
• No power needed - mechanical keypads for a quick and easy install.
• Full removable latchbolt for installation; latchbolt is adjustable in length for precise fitting on site.
• Non-handed - suits both left and right-handed gates. Keypad on both sides.
• Auto-latching - Close the gate and the latchbolt latches into the gate frame. To open the gate, enter the code and turn the handle.
• Bolt support plate with brass bearing ensures durability; latchbolt is supported on the edge of the gate post to reduce friction and wear.
• No counterbore holes required - simply bolt straight through the box section, meaning no chance of losing fixing screws in the gate.
• Use with the Superlock Secure Keep to increase security and product life.

Installation:

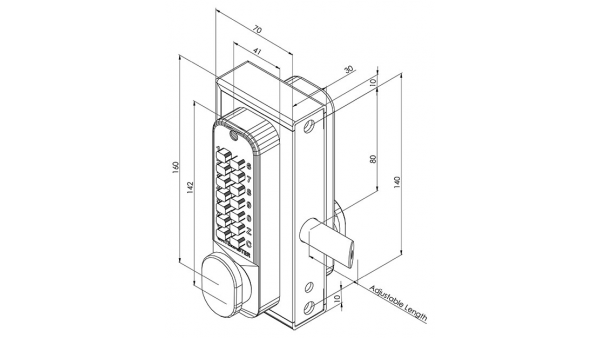

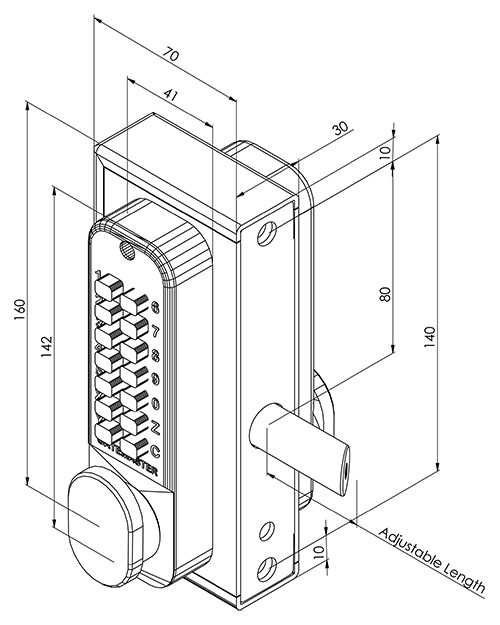

1. Drill 2 x 3/8" (9mm) holes at 5 1/2" (140mm) centers for fixing bolts provided.
2. Drill a second 3/4" (18mm) clearance hold for latchbolt at 2 3/8" (60mm) centers up from the bottom fixing hole..
3. Hold the lock against the back of the box section and screw the latchbolt through the bottom 3/4" (18mm) hole.
4. Lock the latchbolt with the hex key supplied by inserting the hex key into the end of the latchbolt.
5. Fix lock in place using the stainless steel bolt support plate and the countersunk screws provided. Ensure the latchbolt moves freely.
6. Fix strike plate by either welding or screw fixing onto the gate post.

Maintenance:
Every 6 months - Lubricate latchbolt with light oil.
 Annually - Dismantle lock and spray mechanism inside with light oil.
