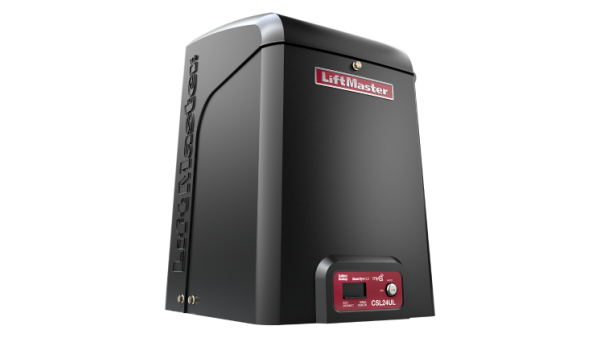

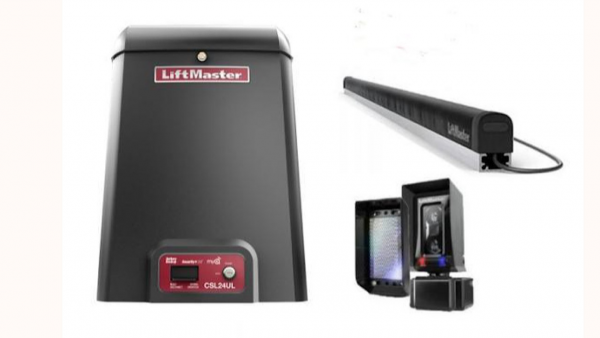

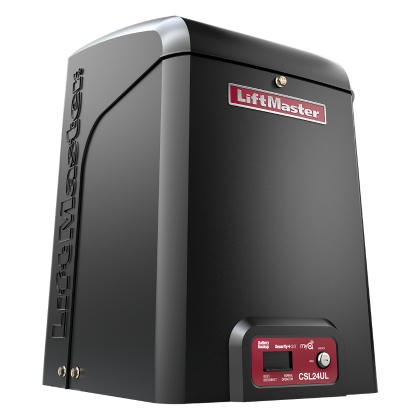

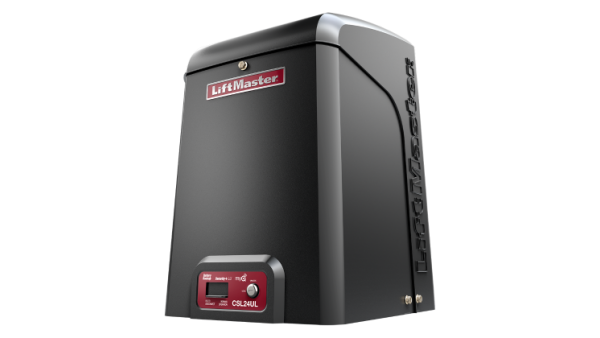

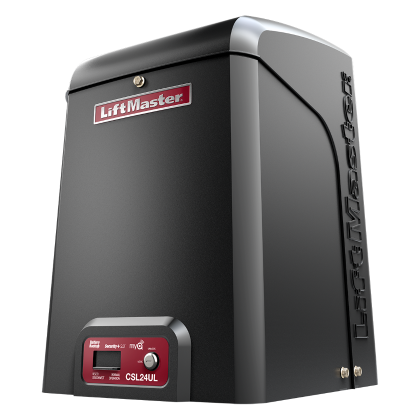

CSL24UL Commercial High Traffic DC Slide Gate Operator
Engineered for more than a million cycles in high-traffic heavy-duty applications, the CSL24UL is ideal for the most demanding slide gate environments. Industry-leading power management technology extends battery backup for up to 24 days* without recharging, providing greater security and reliability. No one else can offer you that peace of mind. Access your property like never before. With MyQ® Technology you can monitor and control your gate from anywhere and get in quickly and securely with the built-in interference eliminating Security+ 2.0™ radio.
• MyQ Technology enables you to securely monitor and control your gate operator and houselights with your smartphone for greater peace of mind.
• Alerts can be received as email or pop-up (push) notifications on your mobile device so that you always know the status of your gate operator.
• MyQ Mobile App is a free download with no annual activation fee.
• Wireless Dual-Gate Communication saves unsightly driveway scars by eliminating expensive conduit for dual-gate communication. Performance
• Million Cycle DC Motor is engineered for more than a million cycles and is designed to perform in the most demanding applications. Soft start/stop operation extends operator and hardware life for heavy-duty gate use.
• Battery Backup safeguards your property by providing up to 208 cycles* or up to 24 days* of standby power when the power is down.
• Solar Ready Ultra-Reliable System delivers power when you need it most to operate the gate and is extremely power efficient at all other times to maximize solar performance.
• Gate Size rated for gates up to 50 ft. in length or weighing up to 1500 lbs.
Safety and Security
• Security+ 2.0™ Patented Multi-Frequency Secure Radio Technology virtually eliminates interference and offers 2X the range of standard remotes so you can access your facility quickly and safely.
• Quick Close/Anti Tailgate Selectable Feature quickly secures gate and prevents unauthorized access.
• Plug-in Loop Detector Inputs Innovative Design ensures vehicles are easily identified to exit property or interrupt gate travel if a vehicle is in its path.
• Safety Inputs are provided for the addition of safety reversing devices, each entrapment point should be protected with its own device.
• UL/CUL Listed tested to the most stringent industry guidelines.
Features:
Fire Department Compliant
Selectable settings allow gate to auto open upon loss of AC power or battery depletion.
Posilock®Feature
If gate is pushed off of closed limit, operator will power on and return gate to closed position quickly securing property.
Pre-motion Warning Alarm
Selectable feature activates on board alarm three seconds prior to gate motion.
Wireless Dual Gate Communication
Saves unsightly driveway scars by eliminating expensive conduit for dual-gate communication.
Bi-Part Delay
Monitors the speed and position of each wing and adjusts the speed as necessary to ensure primary gate closes last, avoiding
potential damage to the gate.
Synchronized Close
Simultaneously closes gates.
Programmable Auxiliary Relays
Two programmable relays with six settings each simplify adding additional features. Switch on/off devices at open or close
limits.
Advanced Traffic Management Control
Secures your property.
Anti Tailgate
Prevents unauthorized access. Gate will pause when closing as vehicle pulls onto interrupt loop or breaks photo beam.
Once vehicle backs up, gate will continue to close.
Quick Close
Closes the gate immediately after a vehicle pulls off the interrupt loop.
One Touch Push Button Programmable Electronic Limit System
Maintains accurate gate position throughout gate travel. Maintains open and close limit position at all times, even after using manual disconnect.
Homelink® Compatible
Version 4 and higher.
LED Diagnostic Display
Easy-to-read, simplifies installation and troubleshooting
Security+2.0 On-Board Radio Receiver
Up to 50 remotes.
Power
110V/220V single phase.
Accessory Power
24VDC 500mA Output.
Switched and unswitched power
Surge
Industrial strength suppression on high and low voltage inputs.
Temperature Specifications
-40°F (-40C) to 140°F (60C).
Gate Travel Speed
12" per second.
Motor
24VDC continuous-duty motor.
Operator Duty Rating
Continuous duty.
Chassis
Constructed with 1/4" gold zinc plated steel for rust prevention.
Worm Gear Reduction
Commercial oil bath gearbox providing a
30:1 worm gear reduction.
Cover
High-density, UV-resistant polycarbonate 2-piece cover for excellent heat and corrosion resistance.
Operator Weight
140 lbs.
Five Years Commercial, Seven Years Residential Manufacturer's Warranty!
