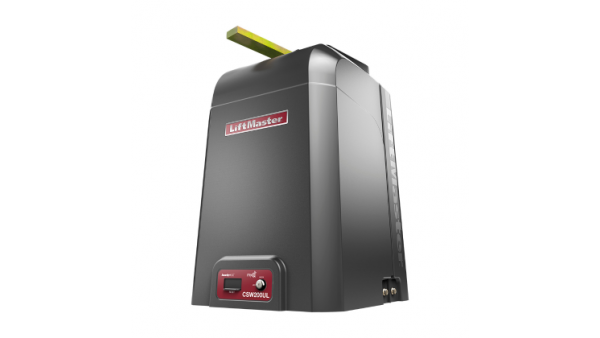

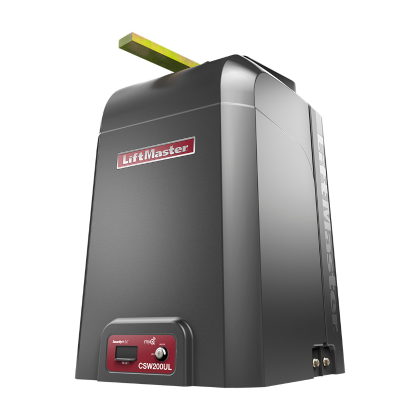

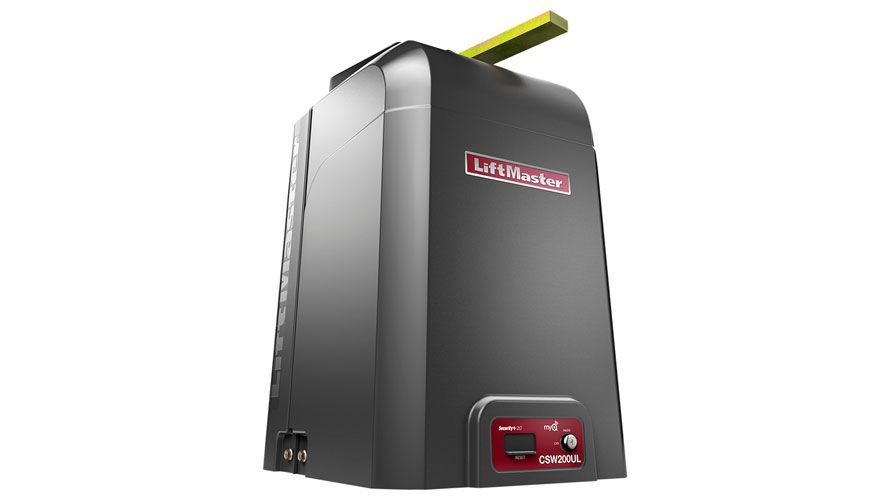

CSWL200UL1HP AC High-Traffic Commercial Slide Operator
CSW200UL1HP Installation Manual Click Here
CSW200UL1HP Sell Sheet Click Here
The Elite Series© CSW200 models of swing gate operators are the first choice for heavy-traffic applications such as large gated communities, residential developments, commercial complexes, and private estates. Unlike other systems, the CSW gate operators are designed with a non-scissor action swing arm to greatly reduce the risk of injury and all models include safety reliability our omnicontrol™board, most advanced control board in industry.
Featuring the highest quality components and backed by years of proven dependability, each unit is carefully inspected and mechanically tested to provide unsurpassed reliability. Unique engineering innovations in each model also ensure that there's a CSW to meet practically every swing gate application.
Includes the LMRRU Monitored Retro-Reflective Photo Eye, to meet the UL325 Standard.
Ideal for Heavy-duty applications such as large gated communities, residential developments and commercial complexes and private estates.
Our P3 Motor® is designed to perform in the most demanding environments. Legacy Elite Heavy-Duty Commercial Gear-Driven Transmission provides unsurpassed reliability.
Wireless Dual-Gate Communication eliminates
expensive conduit costs and unsightly driveway scars. Surge Suppression provides industrial surge and lightning protection against strikes up to 50 feet away. Quick Close/Anti-Tailgatequickly secures property, preventing unauthorized access.
Inherent Reversing Sensor detects obstructions or increased loads. Reverses gate when closing or stops/reverses the gate when opening.
Emergency Release simple-to-use release handle allows gate to be operated manually and maintain limit position once reengaged.
Soft Stop and Mid-Travel Reversal extends operator and hardware life in high-cycle and heavy-gate applications.
LED DIAGNOSTIC DISPLAY Simplifies installation and troubleshooting.
PROGRAMMABLE AUXILIARY RELAYS Easily add additional features, such as warning lights/alarms.
BI-PART DELAY Monitors and adjusts speed and position of each wing to ensure primary gate closes last.
SYNCHRONIZED CLOSE Simultaneously closes gates.
MECHANICAL LIMIT SYSTEM Maintains accurate gate position throughout gate travel, even after using manual disconnect.
PRE-MOTION WARNING ALARM Activates onboard alarm three seconds prior to gate motion.
EXTERNAL ALARM RESET BUTTON Instantly resets the built-in safety alarm siren.
ANTI-TAILGATE Prevents unauthorized access. Gate will pause when closing as vehicle pulls onto interrupt loop or breaks photo beam. Once vehicle backs up, gate will continue to close.
QUICK CLOSE Closes the gate immediately after a vehicle pulls off the interrupt loop.
HOMELINK® COMPATIBLE Version 4 and higher.
SECURITY+ 2.0® ON-BOARD RADIO RECEIVER Up to 50 remote controls (unlimited with 811LM/813LM).
SPECIFICATIONS POWER 110V Single Phase.
ACCESSORY POWER 24VAC, 500mA MAX
MONITORED SAFETY INPUTS Main Board, 3 Expansion Board.
TEMPERATURE SPECIFICATIONS Without Heater: -4°F (-20°C) to 140°F (60°C). With Optional Heater (HTRNB): -40°F (-40°C) to 140°F (60°C).
UL USAGE CLASSIFICATION I, II, III, and IV.
GATE TRAVEL SPEED 90-degree opening in 13-15 seconds.
CONSTRUCTION P3 MOTOR® High-temperature continuous duty motor with class H (high-temperature) insulation is rated for highcycle, high-temperature applications.
OPERATOR DUTY RATING Continuous duty.
CHASSIS Same bolt pattern/footprint, constructed with 1/4 in gold zinc-plated steel for rust prevention.
WORM GEAR REDUCTION Two commercial oil bath gearboxes providing 900:1 worm gear reduction.
COVER High-density, 2-piece UV-resistant polyethylene cover.
OPERATOR WEIGHT 175 lbs.
RECOMMENDED CAPACITIES 1 HP – Rated for gates up to 22 ft. in length or weighing up to 2,000 lbs.
Five years commercial, 7 Year Residential Manufacturer's Warranty!
