Electromechanical Gate Solution Offers One Ton of Holding Power
Securitron GL1: Specification Sheet
Securitron GL1: Installation Manual

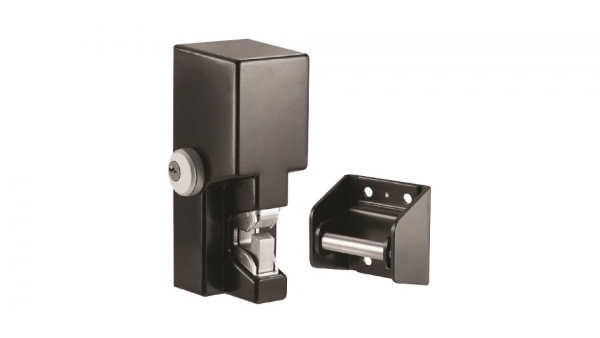

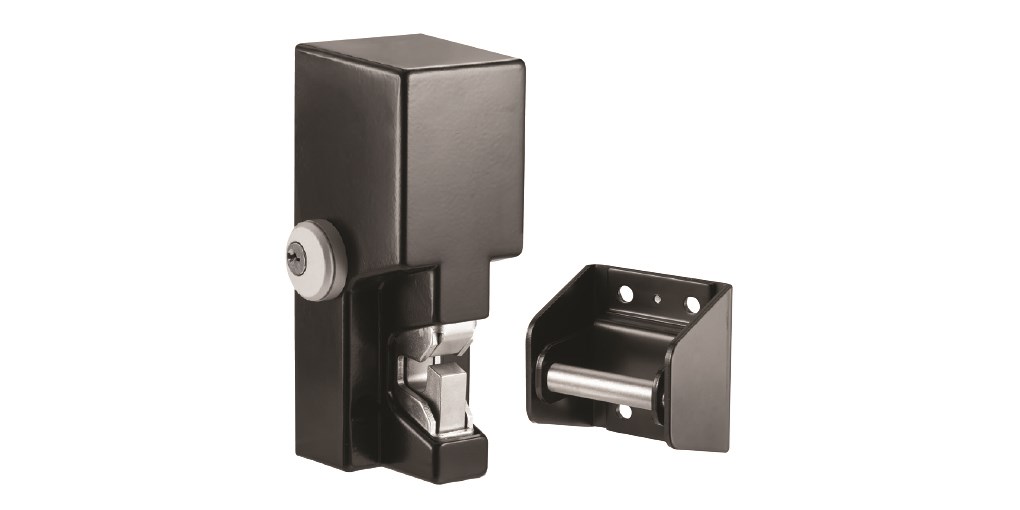

The heavy duty GL1 Electromechanical Gate Lock provides weather-resistant access control for a wide range of gate applications. The GL1 provides 2000lbs of holding force for electrical and manually operated indoor or outdoor gates where preload is a concern. Ideal for swinging or sliding Product features vehicle, pedestrian, or stock gate access control.
Specifications
Holding Force: 2000lbs [907kg]
Dimensions: 2-3/4"L x 7-1/4"W x 3-1/4"D
Electrical: -12 Volts Initial (Peak): (~1.0 sec.) @ 870mA - Reduced: 290mA Power
Consumption: 3.5 Watts
-24 Volts Initial (Peak): (~1.0 sec.) @ 720mA -
Reduced: 170mA Power
Consumption: 4.1 Watts
Operating temperature: -58 to +167F [-50 to +75C]
Indoor or outdoor use
Shipping Weight: 6lbs [2.72kg]
Finishes: Black Finish
Product Features
2,000 lbs holding force
Operates under preload up to 100lbs
Automatic dual voltage - no field adjustment required
Accepts a standard mortise cylinder with Adams Rite MS cam for manual key override (not included, see spacer guide below)
Self-aligning receiver helps compensate for gate misalignment and sag
Tamper resistant cast housing
Optional latch status monitor
Surface mount
® lifetime replacement, no fault warranty
