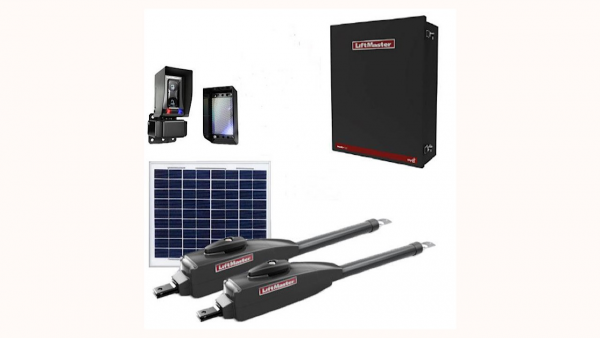

LA412UL 12VDC Solar Residential Automated System For Bi-Parting Swing Gates
LA412PKGUL: Product Guide
LA412PKGUL: Installation Manual
LA412PKGU: Wiring Diagram
Unrivaled Performance, Safety and Accessibility
Solar Model
Secures and safeguards your property by providing a solar charge to the battery-run system for up to 126 days of standby power.
Security+2.0®
Access your property quickly with Security+2.0® Technology that utilizes a tri-band signal that virtually eliminates interference and offers extended range each time the remote control is used.
MyQ ®
Securely control and monitor your Gate Operator from anywhere and get activity notifications through the MyQ® app.
P3 Motors
LiftMaster has designed its own purpose built motor to meet the exact requirements needed to open and close your gate.
Features
• LED Diagnostic Display Simplifies installation and troubleshooting.
• Solar-Ready Ultra-Reliable System Simple solar conversion delivers power when you need it most and is extremely power efficient at all other times to maximize solar performance.
• Programmable Auxiliary Relays easily add additional features, such as warning lights/alarms.
• Bi-Part Delay Monitors and adjusts speed and position of each wing to ensure primary gate closes last.
• Synchronized Close Simultaneously closes gates.
• Keyed Manual Disconnect When unlocked, allows gate to be operated manually.
• Inherent Reversing Sensor Detects obstructions or increased loads. Reverses gate when closing or tops/reverses the gate when opening.
• Fire Department Compliance Allows gate to auto open upon loss of AC power or battery depletion
• Surge Suppression Provides industrial surge and lightning protection against strikes up to 50 feet away.
• Commercial-Duty Cast Aluminum Housing With Heavy-Duty DC Motor Powerful enough to perform in the most demanding applications.
• Wireless Dual-Gate Communication Eliminates expensive conduit costs and unsightly driveway scars.
• Soft Start/Stop and Mid-Travel Reversal extends operator and hardware life in high-cycle and heavy-gate applications. With optional Expansion board.
• Programmable Auxiliary Relays Easily add additional features, such as warning lights/alarms.
• Anti-Tailgate Prevents unauthorized access. Gate will pause when closing as vehicle pulls onto interrupt or breaks photo bean. Once vehicle backs up, gate will continue to close.
• Quick Close Closes the gate immediately after a vehicle pulls off the interrupt loop.
Specifications
• Power Solar Powered system accepts up to 30W 12V panels.
• Accessory Power 24VDC 500mA output. Switched and unswitched power.
• Monitored Safety Inputs 3 Main Board, 3 Optional Expansion Board.
• Temperature Specifications Without Heater: -4°F (-20°C) to 140°F (60°C). With Optional Heater (HTR): -40°F (-40°C) to 140°F (60°C).Safety and Security
Construction
• P3 Motor®12VDC continuous-duty motor.
• Operator Duty Rating See Solar Daily Cycle Rate Chart by Zone.
• CHASSIS Constructed with 1/4 in. gold zinc-plated steel for rust prevention.
• Worm Gear Reduction Precision machined all-metal gear drive.
• Cover High-density, UV-resistant polycarbonate 2-piece cover for excellent heat and corrosion resistance.
Included In Kit:

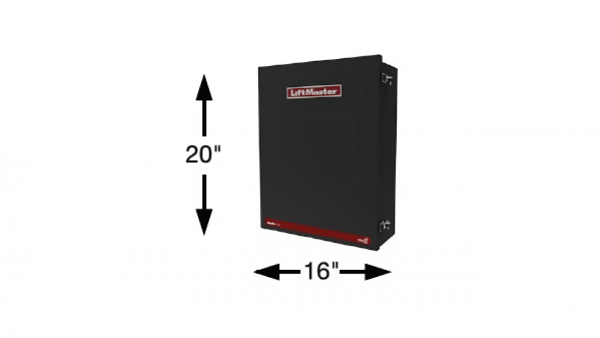

*Large Metal Control Box & Board
*Receiver
*Two Actuators
*Actuator Mounting Brackets
*Photo Eye Sensors (LMMRUL)
*One 33Ah Battery
Limited 2 Year Manufacturer's Warranty
